Embidio Nano Development Kit
Dev Kit

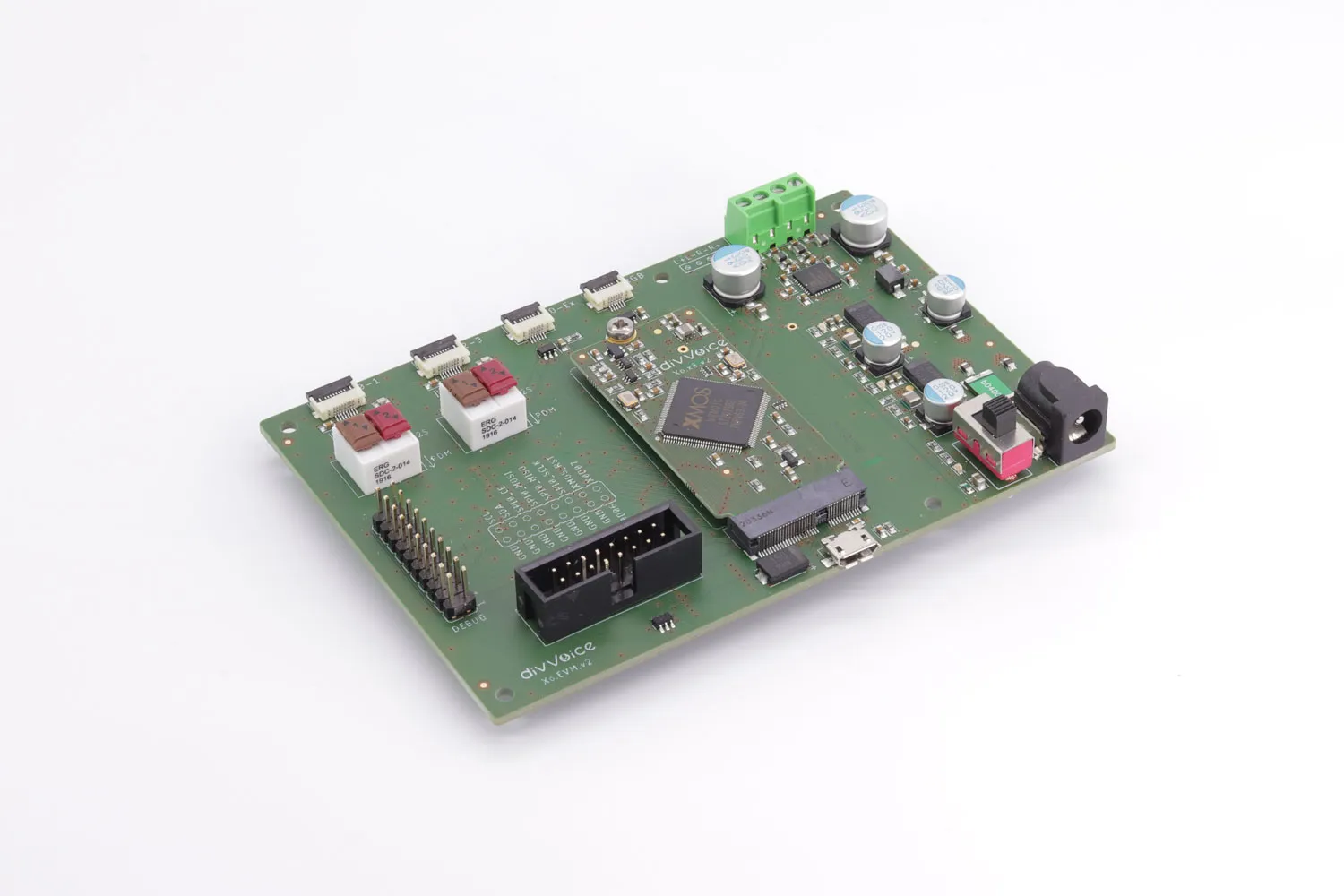

Embidio Nano Development Kit

Prototype and Debug Acoustic Applications on the Nano

The Embidio Nano Development Kit hosts the Nano SoM on a board with an 8-microphone array and access to USB, I2C, SPI and audio I/O. Use it to prototype, test and debug acoustic sensing and voice applications before you move to your own hardware.

Key Features

Feature 1 of 4

8-Mic Array

Onboard array of 8 digital MEMS microphones for voice and acoustic sensing tests.

Specifications

Audio & Acoustics

Microphone Array
Onboard 8 digital MEMS
Speaker Output
2 x 4 W Stereo
Audio Interface
USB Audio Class 1.0 / 2.0

Compute & Connectivity

Core
Hosts Embidio Nano SoM
Connectivity
USB (Data/Power/Audio), Headers for SPI, I2C, GPIOs
OS Compatibility
Linux, Windows, MacOS (via USB)
Firmware Update
Via USB or SPI access
User Interface
Buttons, LEDs

Use Cases

Nano SoM Evaluation

Evaluate the Embidio Nano SoM capabilities and performance

Voice Algorithm Development

Develop and test voice algorithms and DSP processing

Firmware Development

Create and debug firmware for the Embidio Nano

Proof-of-Concept

Build proof-of-concept voice applications quickly

Hardware Integration Testing

Test hardware integration before production

Related Products

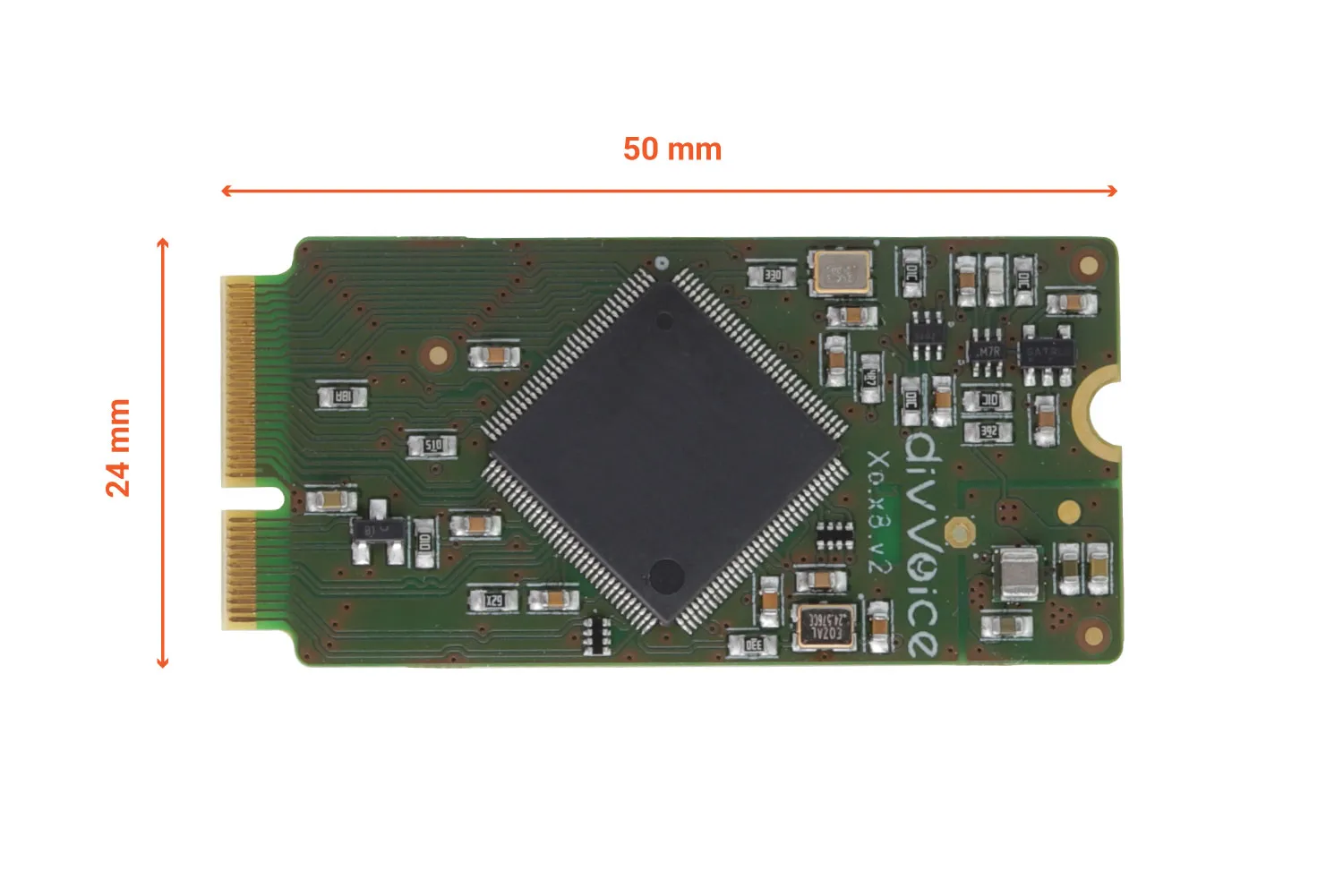

Embidio Nano

Embidio Nano

Compact Acoustic SoM for Series Production

View Product

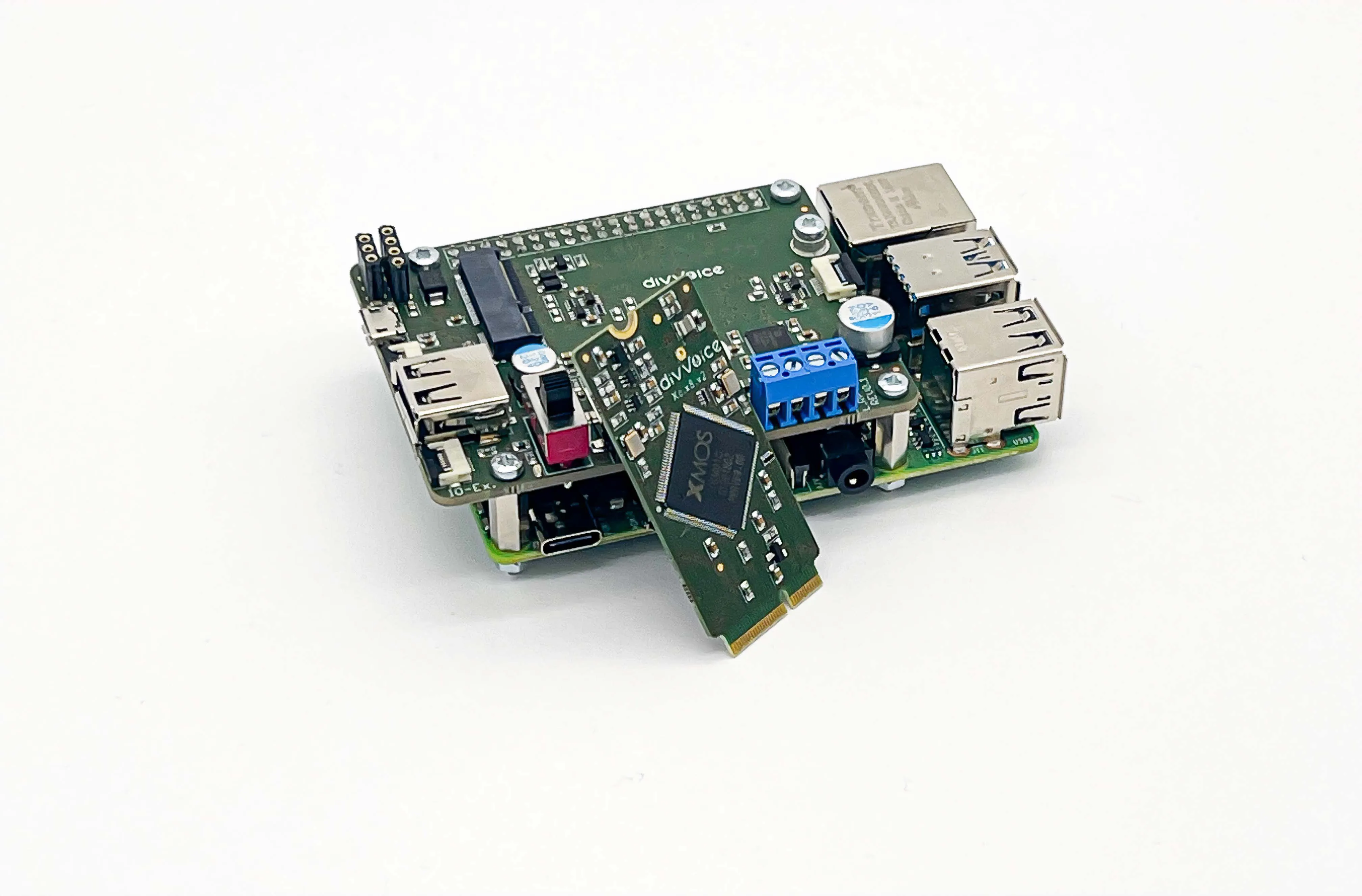

Embidio Nano Raspberry Pi Kit
