Acoustic Intelligence

Embidio Sensor

Passive Acoustic Detection & Early-Warning System

Autonomous acoustic sensor module for real-time detection of drones, vandalism and wildlife sounds — in darkness, fog or behind obstacles, where cameras can't see. Complements radar, RF and optical sensors. Detection range up to 500 m, depending on source type and environment.

Field Deployments

8
Field devices in documented operation: 3 in a German city (urban safety, since June 2026) and 5 in the DeWieSe project (environmental monitoring, Oldenburg and Berlin). More units are on order.
4 yrs
Running acoustic sensor systems in the field
9+ yrs
Experience in acoustic detection

Acoustic Awareness for Complex Environments

Where Acoustic Intelligence Makes the Difference

Acoustic sensing opens new possibilities across security, environmental protection, and urban management:

Critical Infrastructure

Airports, energy plants, public buildings

Environmental Monitoring

Wildlife conservation, biodiversity, habitat monitoring

Public Events

Mass gatherings, event security

Urban Safety

Noise mapping, vandalism prevention, city planning

Limitations of Existing Systems

Current detection technologies each have significant blind spots:

Radar

High costs, complex installation, struggles with small drones.

RF Scanners

Only detect drones with active radio signals. RF-silent drones remain invisible.

Optical Systems

Depend on visibility and lighting. Fail at night, in fog, or smoke.

The Solution: Acoustic Detection

100% Passive

Purely passive detection: the sensor only listens and emits no probing signal, unlike radar.

Sight-Independent

Works day and night, in fog, smoke, and poor visibility.

RF-Independent

Detects fiber-optic-controlled and autonomous drones without radio signals.

Complementary to existing systems: Embidio Sensor supplements radar, RF scanners, and optical sensors where they fail.

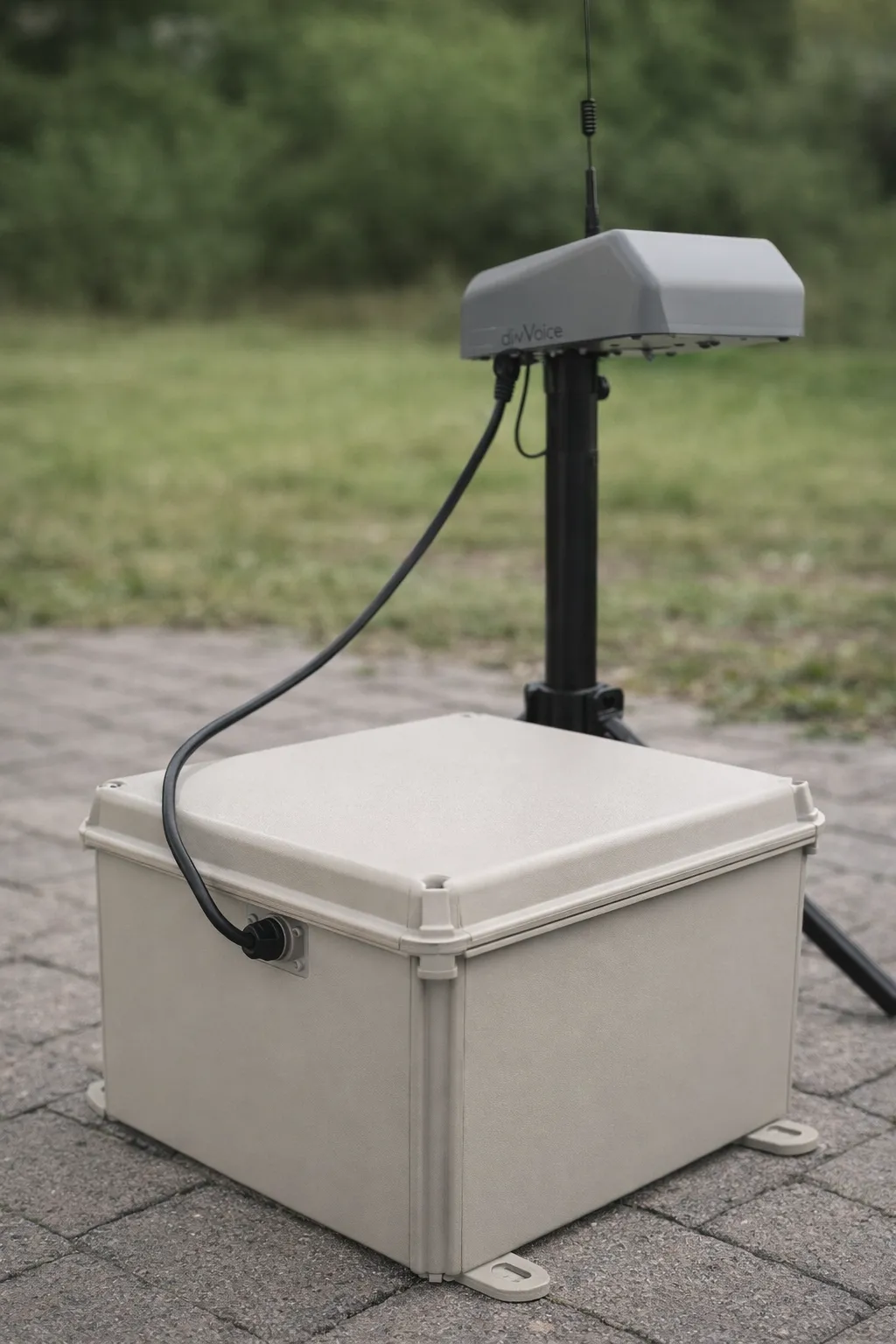

Embidio Sensor Hardware Unit

Hardware

The Embidio Sensor is built on the Embidio hardware platform for acoustic capture.

Made in Germany— Development & production in Germany
  • Ruggedized design for outdoor deployment
  • MEMS microphone array
  • Edge-AI capable processor
  • Combines microphones with additional sensor types
  • Housing options up to IP65, selected per deployment

Key Capabilities

One sensor platform, several detection classes: drones, acoustic anomalies, wildlife activity, and vandalism sounds.

01

Drone Detection

Real-time acoustic detection of drones with direction-of-arrival estimation. The system recognizes several drone types and learns new ones.

02

Acoustic Event Detection

Detection and classification of acoustic events with direction-of-arrival estimation for source localization.

03

Bird & Wildlife Detection

Species identification through acoustic signature analysis, used in the DBU-funded DeWieSe field research. Supports long-term population monitoring — fully passive and non-invasive.

04

Vandalism & Graffiti Detection

Real-time detection of spray cans, impacts, glass breaks, and other vandalism sounds with automatic alerting to security services. Piloted in a German city since June 2026, with on-device processing.

05

Modular Sensor Fusion

Combines the microphone array with additional sensor types — for example gas, motion, radar, or Bluetooth — fused via the ConHive platform. Further sensor types are possible depending on the use case.

One Platform, Many Detection Classes: The same hardware and network serve several detection classes, adapted to customer-specific tasks through targeted training

Technical Specifications

Acoustic Sensor Array

Coverage
Up to 360°, configurable per deployment
Direction of arrival
~5° reference, configurable by requirement
Frequency
Configurable, up to 96 kHz depending on use case
Protection
Ruggedized options up to IP65, selected per deployment

Compute & Connectivity

Processing
Edge-AI inference
Latency
< 500 ms up to ~30 s, depending on sensor fusion / false-alarm avoidance
Connectivity
4G / LTE / WiFi / BLE
Position
GPS integrated

Power & Autonomy

Battery
Sized per deployment
Runtime
Depends on configuration: mains, or battery with optional solar
Solar
Optional
Sleep Mode
Supported

Possible Deployment Scenarios

Environmental & Conservation

  • Wildlife and species monitoring
  • Biodiversity measurement
  • Noise mapping
  • Long-term ecological observation

Infrastructure Monitoring

  • Critical infrastructure (energy, water)
  • Airports and transportation hubs
  • Public buildings and campuses
  • Industrial plants and data centers

Event Security

  • Large-scale events
  • Temporary security zones
  • Sports events
  • Public gatherings

Urban Safety

  • Vandalism and noise prevention
  • Acoustic activity monitoring
  • City planning and traffic analysis
  • Public space management

ConHive Platform

The ConHive platform manages all Embidio Sensor units centrally.

  • Real-time device monitoring
  • Geolocation & geofencing
  • Remote command execution
  • Event streaming & alerts
  • Fleet management
  • API for system integration

Operated in Germany ConHive Cloud runs on our own infrastructure in Germany.

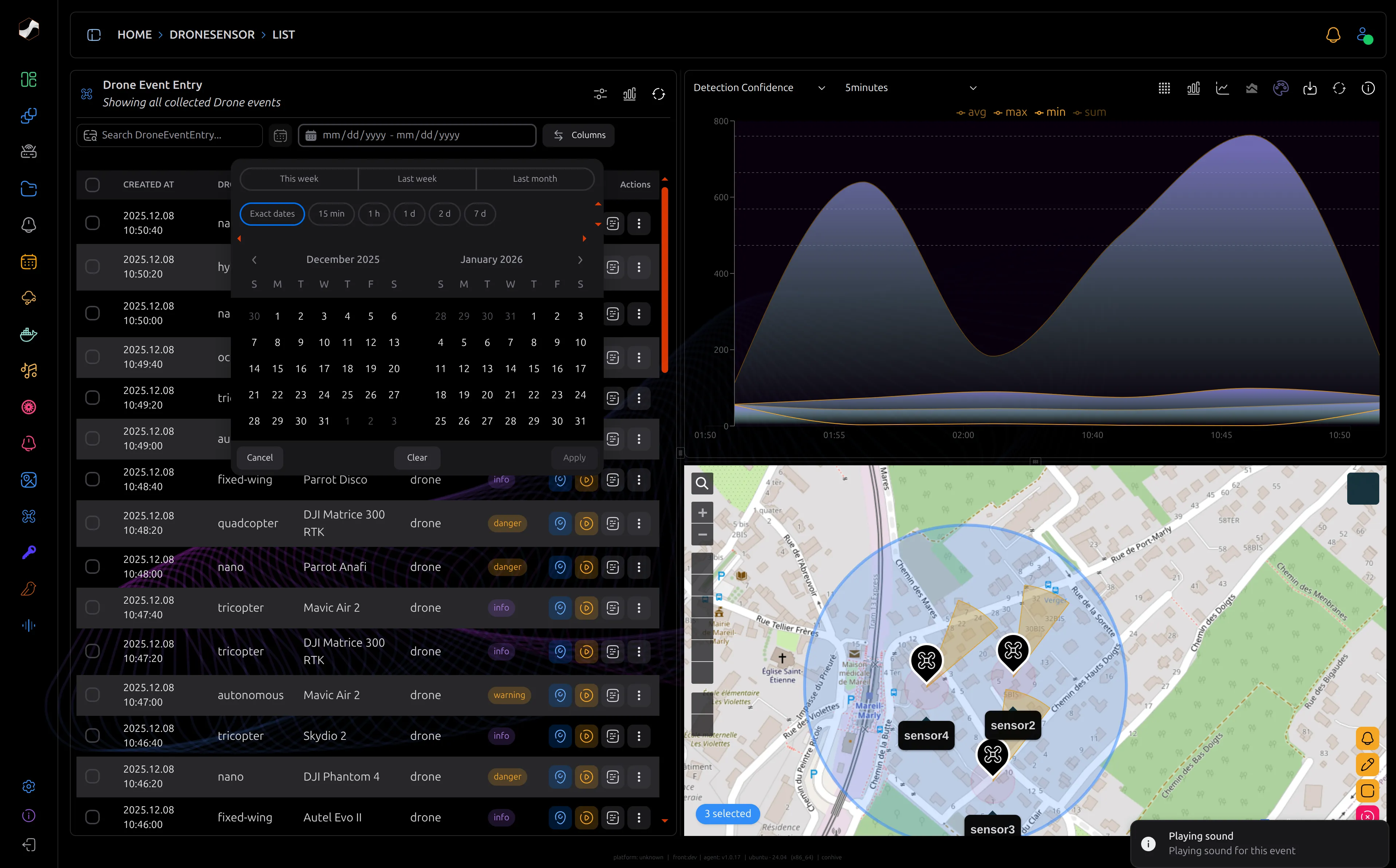

ConHive Dashboard
Get in touch

Request a Demo of Embidio Sensor

Request a demo or talk to our team about your monitoring and detection needs. We offer technical consulting and integration guidance.
