Embidio Nano
Device

Embidio Nano

Compact Acoustic SoM for Series Production

The Embidio Nano is our system-on-module for series production. At 50 × 24 mm and with I2S, PDM, I2C and SPI interfaces, it brings on-device acoustic sensing into space-constrained products — from voice control and sound event recognition to continuous condition monitoring. It is already in series production in the Mona AI medical assistant by Clinomic.

Key Features

Feature 1 of 4

Compact SoM

At 50 × 24 mm, it fits into space-constrained products and series designs.

Specifications

Audio & Acoustics

Microphone Input
Up to 8 MEMS (I2S or PDM)
Speaker Output
2 x 4 W Stereo
Audio Interface
USB Audio Class 1.0 / 2.0 (via Dev Kit/Integration)
Input Channels
Up to 8
Output Channels
2 (Stereo)
Sampling Rates
16 / 48 kHz
DSP Features
Beamforming, Noise Reduction, Acoustic Echo Cancellation, AGC, EQ

Compute & Connectivity

Control/Expansion
SPI, I2C (via module pins)
OS Support
Linux, Windows, MacOS (via USB)
Firmware Update
via USB (using Dev Kit or host)
Control
I2C or USB (via Dev Kit or host)

Physical & Power

Dimensions
50 x 24 mm
Operating Temperature
0°C to 70°C
Storage Temperature
-55°C to 125°C
Power Supply
Typically 3.3V/5V DC

Use Cases

Medical Devices & Assisted Living

Hands-free voice control, acoustic monitoring and ambient event detection for medical equipment and care environments. In series production in the Mona AI medical assistant by Clinomic.

Industrial Condition Monitoring & Controls

Detect machinery faults and anomalies through on-device acoustic analysis, and build hands-free interfaces for industrial control panels

Automotive Quality Assurance

Embed acoustic inspection into production lines

Wearable Technology

Compact integration for wearable devices with acoustic sensing and voice control

Voice Assistant Platforms

Develop and evaluate voice assistant platforms

Digital Companion

Create digital companions and accessibility aid devices

Related Products

Embidio Hub

Embidio Hub

Acoustic Processing & Integration Hub (USB)

View Product

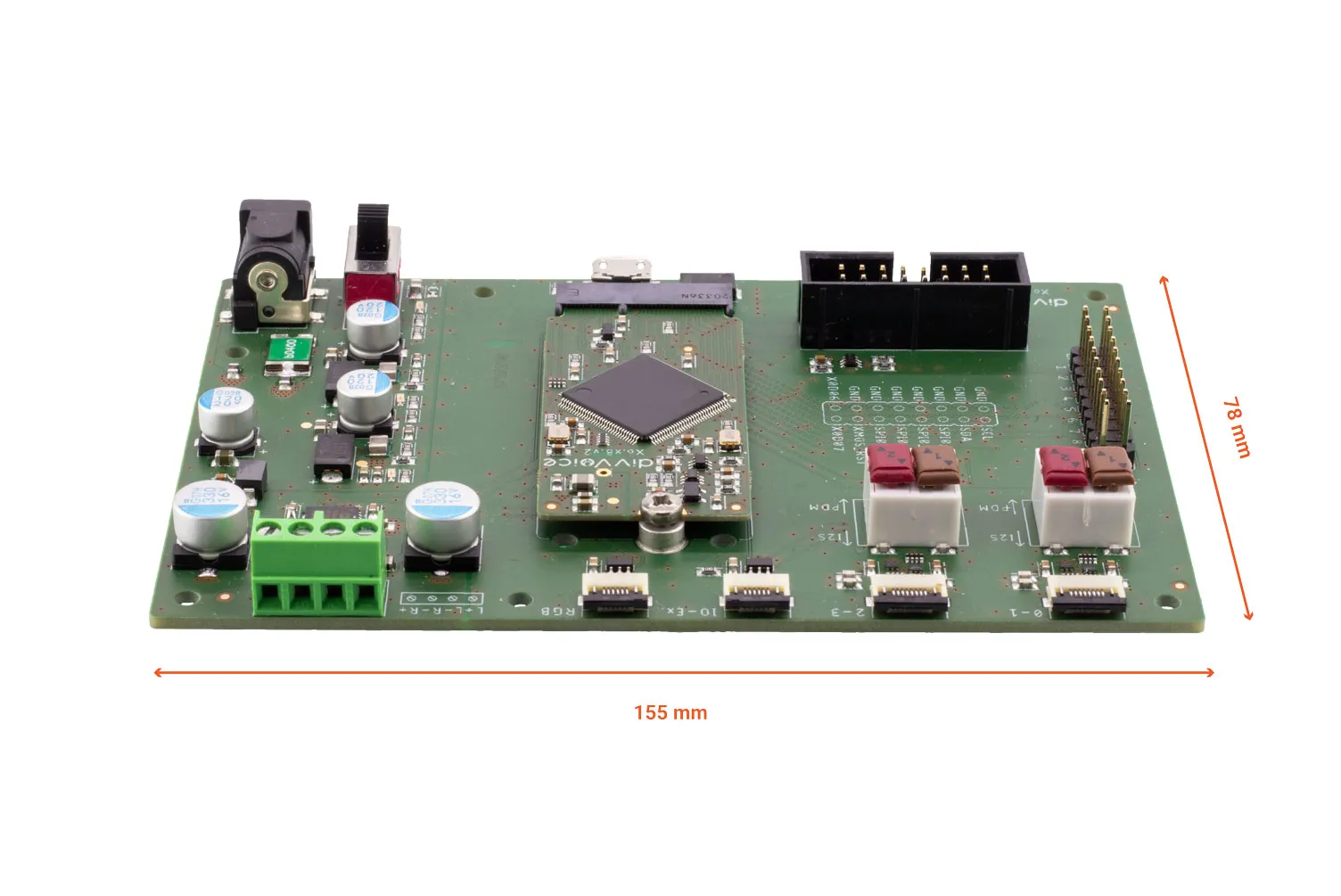

Embidio Nano Development Kit

Embidio Nano Development Kit

Prototype and Debug Acoustic Applications on the Nano

View Product

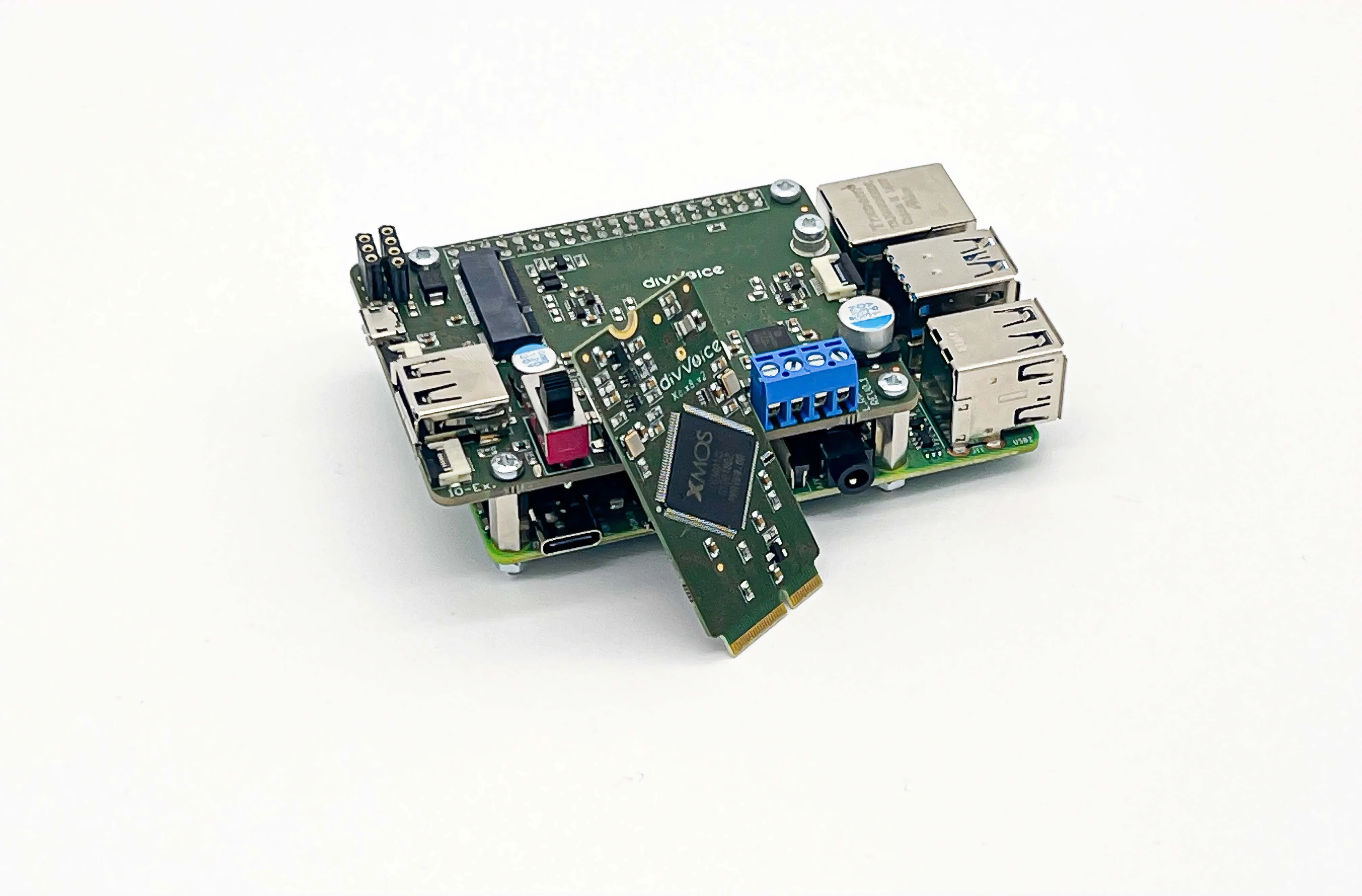

Embidio Nano Raspberry Pi Kit
